Description

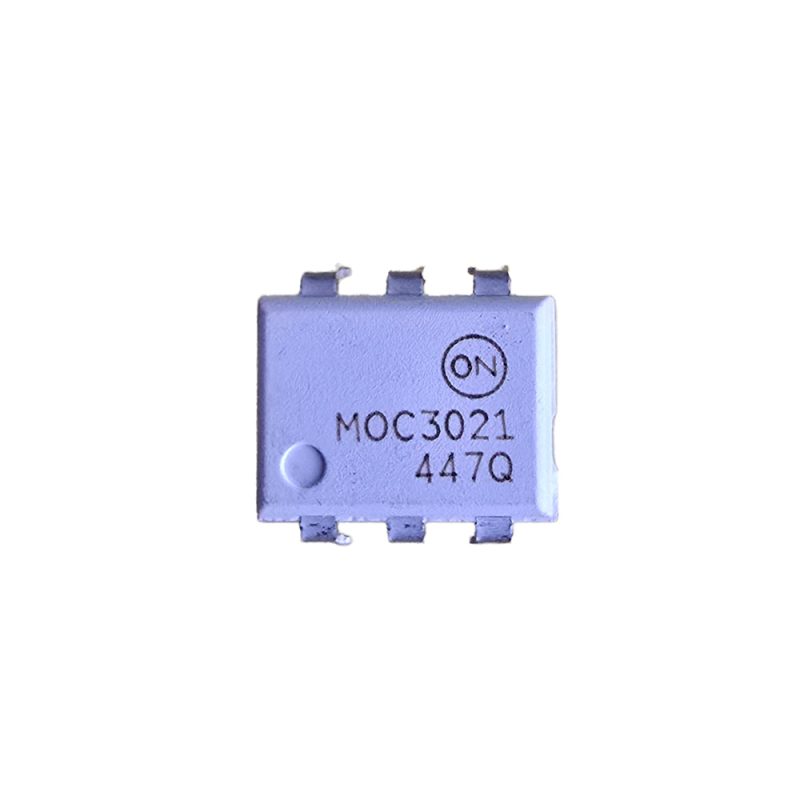

The MOC301XM and MOC302XM series are optically isolated triac driver devices. These devices contain a GaAs infrared emitting diode and a light activated silicon bilateral switch, which functions like a triac. They are designed for interfacing between electronic controls and power triacs to control resistive and inductive loads for 115 VAC operations.

Features
Emitter Continuous Forward Current (Max): 60mA
Emitter Reverse Voltage (Max): 3V
Emitter forward voltage: (Typ=1.15V , Max=1.5V)
Detector Peak Repetitive Surge Current (Max): 1A
Storage Temperature: -40 to 125 °C

Applications
• Industrial Controls
• Solenoid/Valve Controls
• Traffic Lights
• Static AC Power Switch
• Vending Machines
• Incandescent Lamp Dimmers
• Solid State Relay
• Motor Control
• Lamp Ballasts
