Features

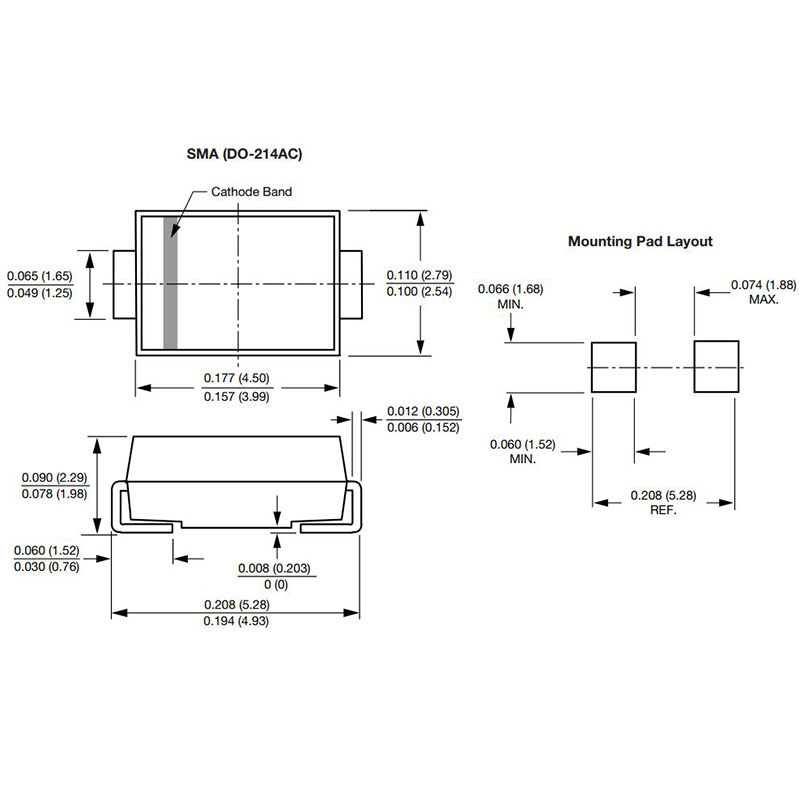

• Low profile package
• Ideal for automated placement
• Glass passivated pallet chip junction
• Ultrafast reverse recovery time
• Low switching losses, high efficiency
• High forward surge capability
• Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C

Ratings

Maximum repetitive peak reverse voltage: 1000V
Maximum RMS voltage: 700V
Maximum DC blocking voltage: 1000V
Maximum average forward rectified current at TL = 110 °C: 1A
Peak forward surge current 8.3 ms single half sine-wave superimposed on rated load: 30A
Operating and storage temperature range: -55 TO 105 °C
Maximum instantaneous forward voltage @ 1A: 1.7V
Maximum DC reverse current at rated DC blocking voltage: 10μA
Maximum reverse recovery time: 75ns
Typical junction capacitance: 10pF
