Features:

• Fast switching
• Low forward voltage, high current capability
• Low power loss, high efficiency
• High current surge capability
• High temperature soldering guaranteed:
250℃/10 seconds,0.373″(9.5mm) lead length At 5 lbs.(2.3kg) tension

Ratings:

Maximum Repetitive Peak Reverse Voltage: 20V
Maximum RMS Voltage: 14V
Maximum Average Forward Rectified Current 0.375″(9.5mm) lead length at TL =90℃: 1A
Maximum Instantaneous Forward Voltage @1A: 0.45V
Peak Forward Surge Current 8.3mS single half sine-wave superimposed on rated load (JEDEC method): 25A
Typical Junction Capacitance: 110pF
Operation and Storage Temperature Range: -55 to +125

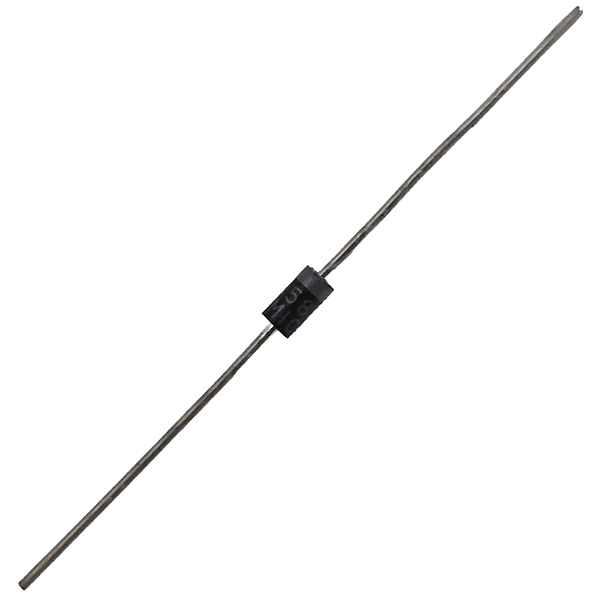

Package: DO-41
