Features

• Channel Polarity: N-Channel
• Max. Continuous Drain Current: 1.8A
• Max. Pulsed Drain Current: 7.2A
• Max. Power Dissipation: 1.8W
• Max. Static Drain-to-Source On-Resistance (VGS = 10V, ID = 1.8A): 300mΩ
• Min. Drain-to-Source Breakdown Voltage: 60V
• Gate Threshold Voltage: (Min)0.8V, (Max)1.8V
• Max. Turn-on delay time: 8.1ns
• Rise Time: 15ns
• Max. Turn-off delay time: 41ns
• Fall time: 28ns

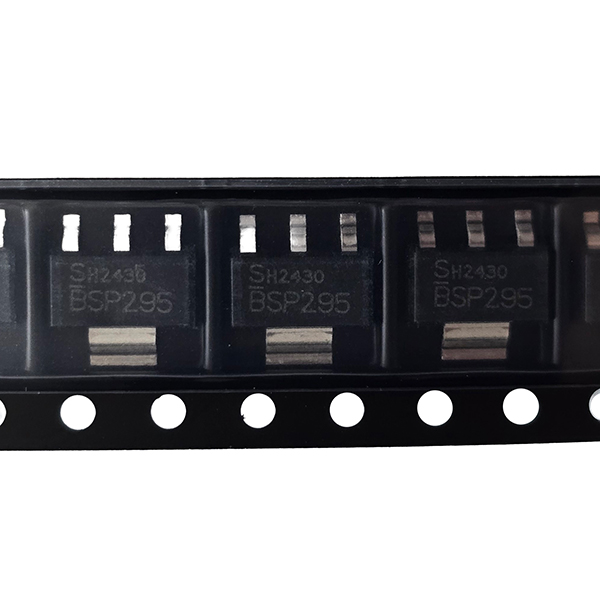

• Package: SOT-223
