- Advanced Process Technology
- Ultra Low On-Resistance
- Dynamic dv/dt Rating
- 175°C Operating Temperature
- Fast Switching
- Ease of Paralleling
Ratings
- Continuous Drain Current, VGS @ 10V: 29A
- Pulsed Drain Current: 100A
- Power Dissipation: 68W
- Min. Drain-to-Source Breakdown Voltage: 55V
- Min. Static Drain-to-Source On-Resistance: 40mΩ
- Gate Threshold Voltage: (Min.) 2V , (Max.)4V

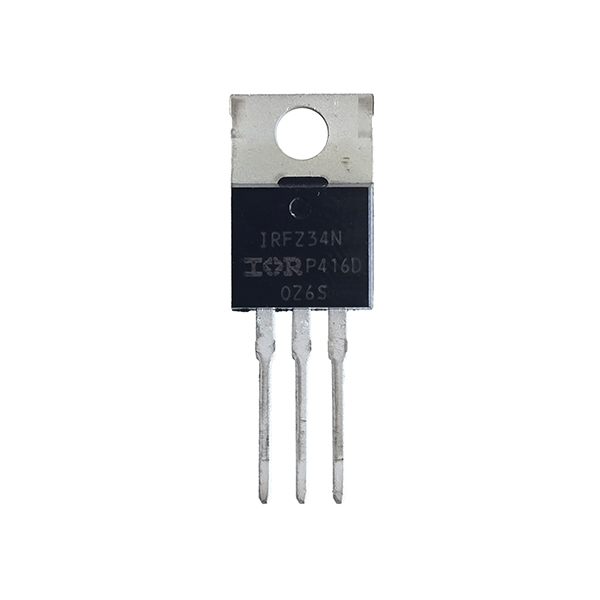

- Package: TO-220AB
