Features

• Channel Polarity: N-Channel
• Max. Continuous Drain Current, VGS @ 4.5V (@Ta=25°C): 4.2A
• Max. Pulsed Drain Current: 33A
• Max. Power Dissipation @Ta=25°C : 1.25W
• Max. Static Drain-to-Source On-Resistance (VGS = 4.5V): 45mΩ
• Min. Drain-to-Source Breakdown Voltage: 20
• Gate Threshold Voltage: (Min)0.6V , (Max)1.2V
• Turn-On Delay Time: 7.5ns
• Rise Time: 10ns
• Turn-Off Delay Time: 54ns
• Fall Time: 26ns

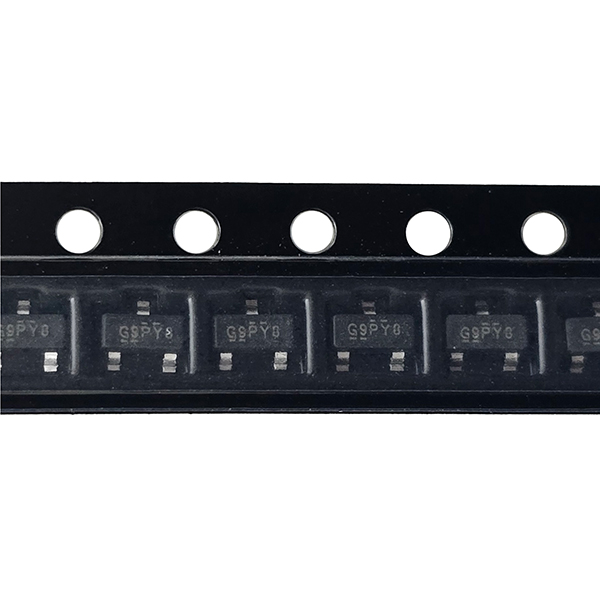

• Package: SOT-23 (SC-59)
