• Input Voltage: DC 6-60V
• Display Accuracy: 0.1V
• Control Accuracy: 0.1V
• Output Type: Direct output
• Voltage Tolerance: +/- 0.1V

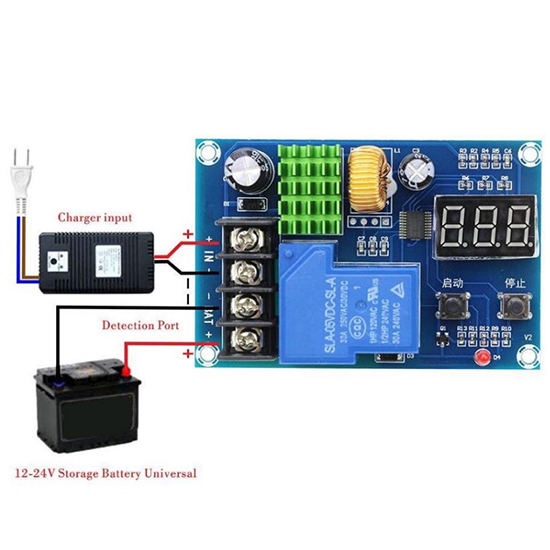

• Application Domains: 6-60V storage battery
• Size: 81 * 54 * 18mm

Using Method:
In the context of the voltage value, the start button plays role of Up-adjust action, stop button plays the role of Down-adjust action.
1. Start Startup Voltage: In normal display voltage state, press the button to display start charging voltage; long press for 3 s the digital tube flashes; you can start or stop button to set start voltage charging value.
2. Set Off Voltage: In normal display voltage state, press the button to display charging voltage stop; long press the button for 3 s the digital tube flashes; you can start or stop button to stop set charge voltage value.
3. Factory reset: in power on the state press the start / stop button at the same time, digital tube displays 888; that represents factory reset settings.
