Features:

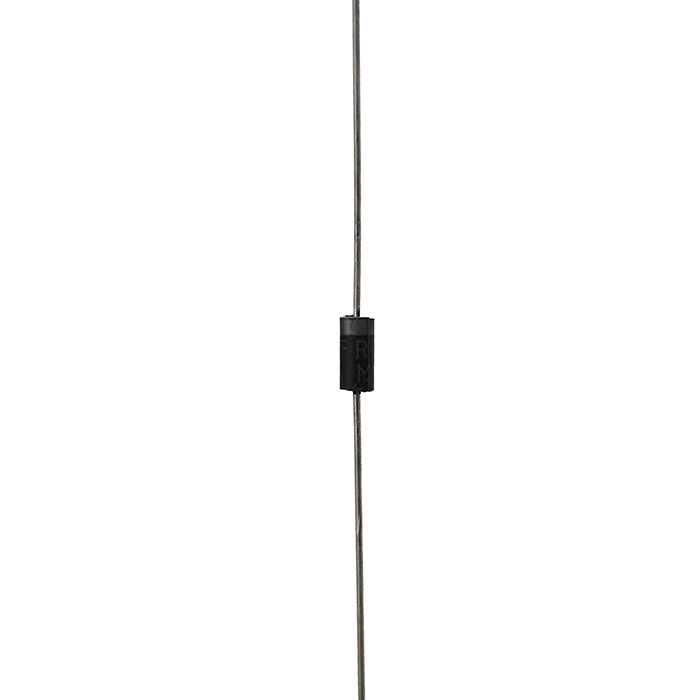

• Package: DO-41 (DO-204AL)
• Low cost fabrication
• Fast switching for high efficiency.
• Low reverse leakage
• High forward surge current capability
• High temperature soldering guaranteed:
260℃/10 secods/.375”(9.5mm)lead length at 5 lbs(2.3kg) tension

Ratings:

Maximum repetitive peak reverse voltage: 1000v
Maximum RMS voltage: 700v
Maximum DC blocking voltage: 1000v
Maximum average forward rectified current 0.375″ (9.5 mm) lead length at TA = 75 °C: 1A
Peak forward surge current 8.3 ms single half sine-wave superimposed on rated load: 30A
Maximum reverse recovery time: 500ns
Typical junction capacitance: 15pF
